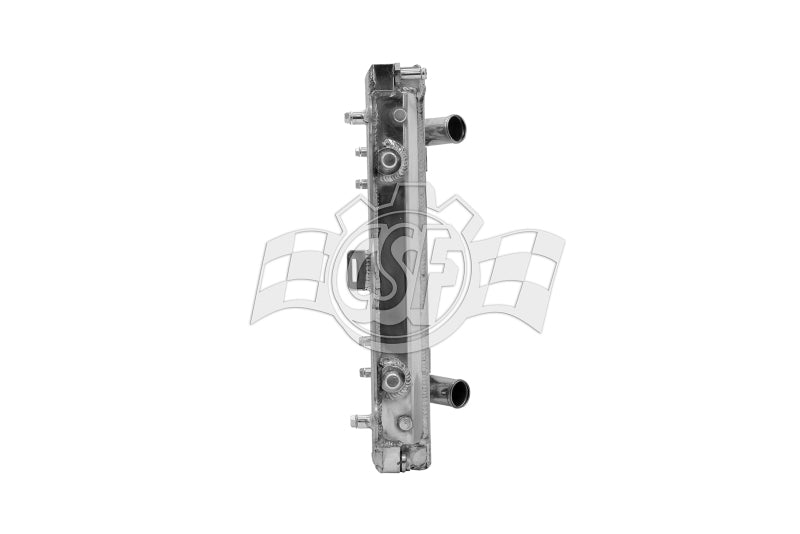

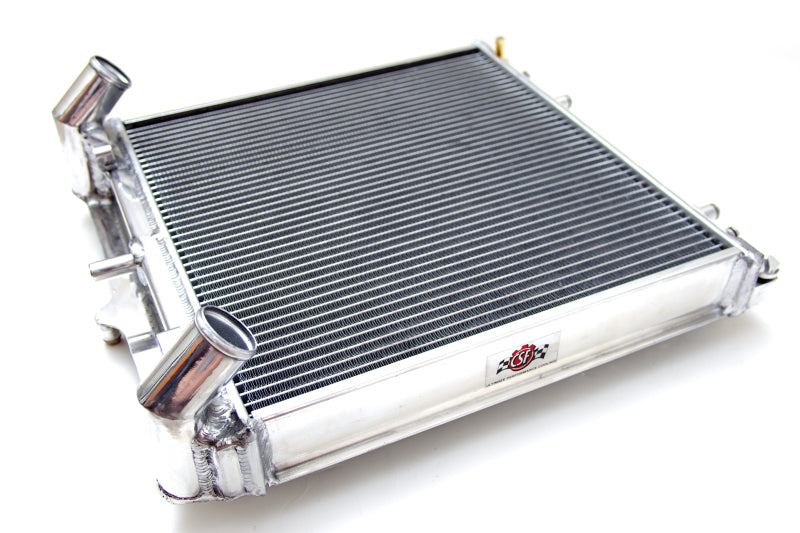

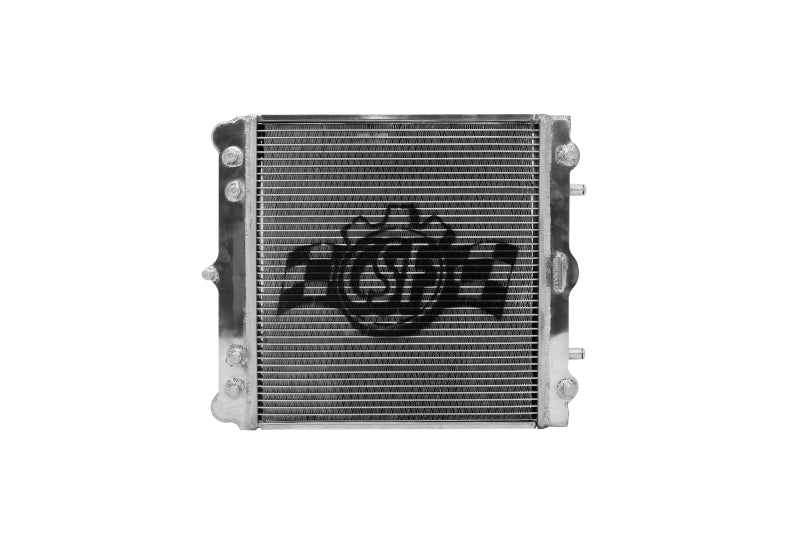

CSF 96-04 Porsche Boxster (986) Radiator (Fits Left & Right Side)

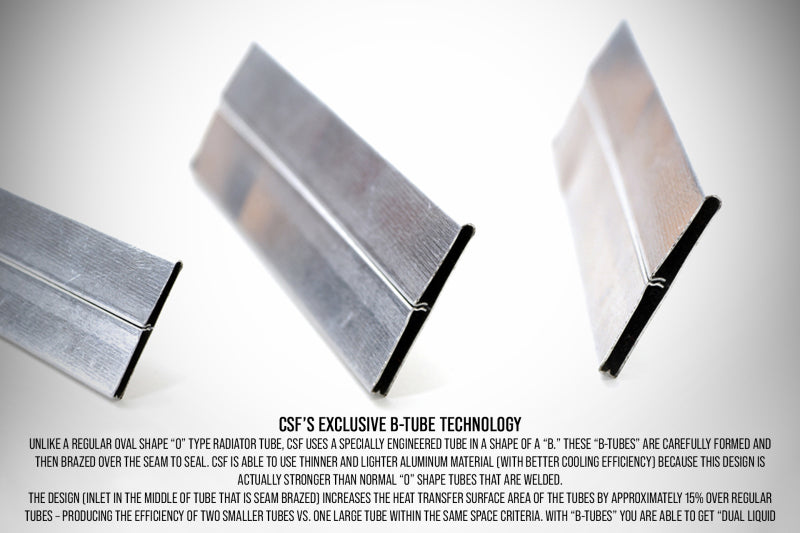

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 996 911/986 Boxster running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year	Make	Model	Submodel
2004	Porsche	911	40th Anniversary Edition
1998-2006	Porsche	911	Carrera
1998-2004,2006	Porsche	911	Carrera 4
1998,2002-2006	Porsche	911	Carrera 4S
1998,2005-2006	Porsche	911	Carrera S
2002-2005	Porsche	911	GT2
2004-2005	Porsche	911	GT3
1998,2002	Porsche	911	Targa
2001-2005	Porsche	911	Turbo
2005	Porsche	911	Turbo S
1997-1999,2004-2005	Porsche	Boxster	Base
2000-2003	Porsche	Boxster	Roadster
2000-2003	Porsche	Boxster	Roadster S
2004-2005	Porsche	Boxster	S
2004	Porsche	Boxster	S Special Edition
