D2 Racing Coilovers for 2014-2021 Subaru Impreza WRX/STI AWD

Street Coilover Suspension Kit

• Street coilover has 36-way different damping adjustments.
• Use SAE9254 materials for spring to avoid deformation and 6061 aluminium to avoid rust.
• Desired ride height can be achieved by adjusting the bottom mount and not required to compress the spring.
• Uses spring bearings to avoid the creaking sounds when turning the steering wheel which are associated with other brands.
• The ride height can be dropped 60mm~100mm from OE ride height.
• If there is no application for your vehicle, we can customize a coilover for you to meet your requirements.
• All applications listed on our website are for 2WD model unless we specify 4WD.
• The “model year” defined for each application on our website might be different to the ones in each country; therefore, please confirm the “production years” with us if you are unsure.

Sport Coilover Suspension Kit

• Increased damping by 30~50% and 2kg/mm stiffer spring rate compared with street setting, the sport spec meets the requirements of vehicle enthusiasts. It is suitable for track day and aggressive driving.
• Wishbone design coilover comes with aluminum top mount; Most of McPherson design coilover comes with pillowball top mount to adjust the camber of tires.

• Monotube design is adopted for this coilover system as it can retain stable damping and have varieties of responses on uneven roads and bumps to maintain comfort.
• A movable lower mount is adopted; both ride height and preload can be adjusted by the adjustable lower mount. The ride height can be dropped 60~100mm from OE ride height for your reference.
• Sport damper has 36-way damping settings to bring the best performance for different road conditions.

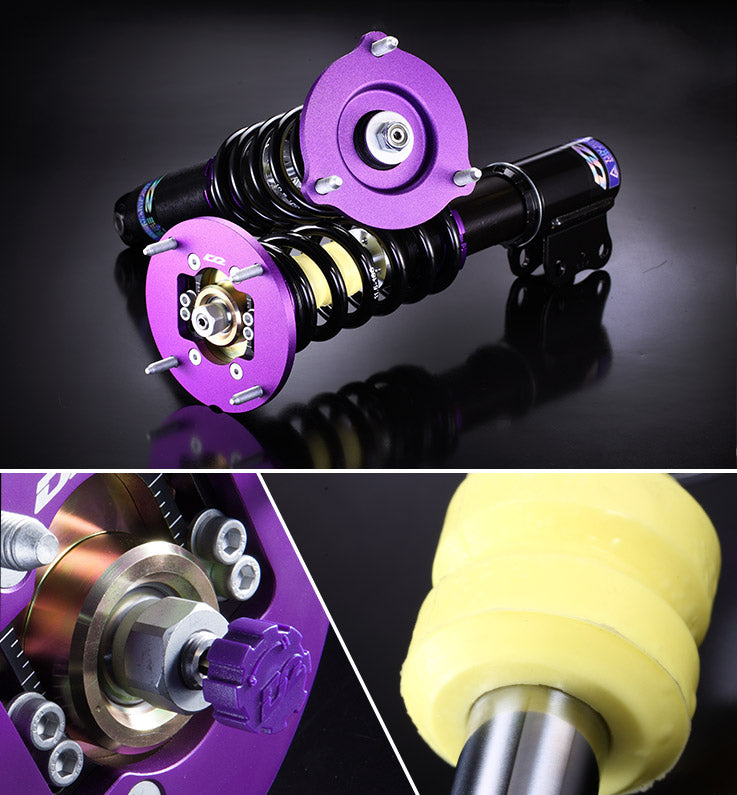

Circuit Coilover Suspension Kit

• This kit is only for circuit use. In order to make each and every vehicle perform the best way possible, you can give us the details of all parts fitted to your car and we can customize the coilover kit just for your car.
• Aluminium upper mount for wishbone type coilover enhances the handling and pillowball upper mount for McPherson coilover enhances the handling and allows adjustment of camber angle.
• 36 different damping settings are able to respond to the varieties of road conditions.
• Aluminium lightweight bottom mounts allows ride height adjustment and reduces the upsprung weight of vehicle.
• The spring rate and damping force are specially made for circuit coilovers.
• Standard monotube design with φ44mm big piston lowers the oil temperature
  easily and maintains the performance of the coilovers.
• The ride height can be dropped 80mm~120mm from OE ride height.
• If there is no application listed, we can customize a coilover for you to meet your
  requirements.
• Camber and caster can be adjusted by 3D pillowball upper mount.
• All applications listed on our website are for 2WD model unless we specify 4WD.
• The “model year” defined for each application on our website might be different to the ones in each country; therefore, please confirm the “production years” with us if you are unsure.

Drag Coilover Suspension Kit

• This unit is suitable for drag race purposes. These are set up depending on your drive-train, such as FWD, RWD, and 4WD; the coilover will be tailored, of course.
• The coilover can be dropped 60mm~100mm from OE ride height.
• Made up of aluminum material to reduce the weight of vehicle.

• Camber plate can be adjusted by McPherson coilover kit
• If there is no application listed, we can customize the coilover for you to meet the
  your requirements.
• 3D pillowball upper mount for your options can be adjusted the camber and caster.
• All applications listed on our website are for 2WD model unless we specify 4WD.
• The “model year” defined for each application on our website might be different to the ones in each country; therefore, please confirm the “production years” with us if you are unsure.

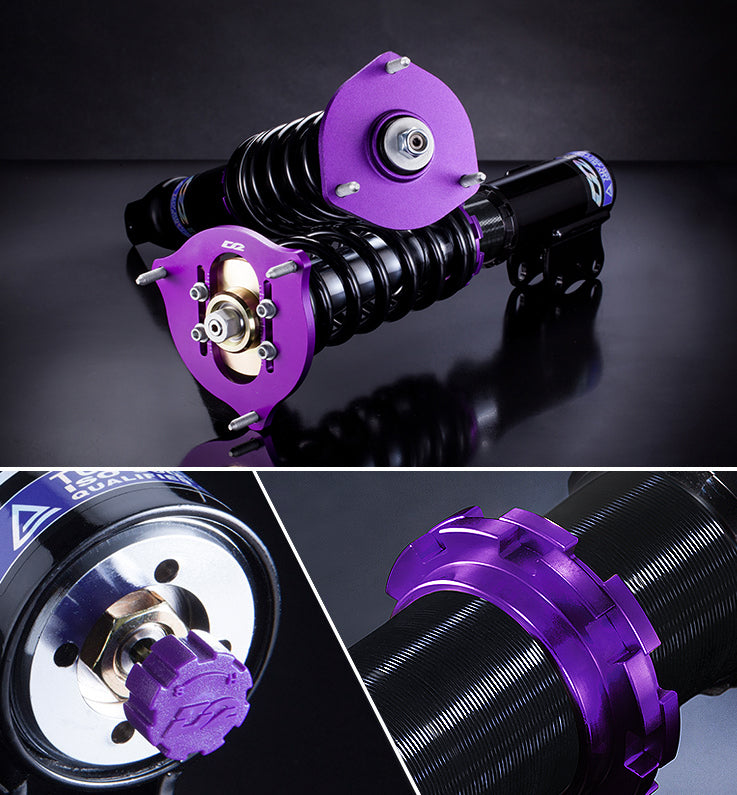

Drift Coilover Suspension Kit

• This is an excellent coilover, specially designed for drifting use.
• All McPherson suspensions offer mono and inverted tube design (φ55mm). It is built to handle aggressive sideways movement when drifting.
• Drift Spec Coilovers allow you to have precision control over your vehicle during controlled slides. With the assistance of our inverted dampers (where applicable),  these coilovers offer maximum performance under severe track conditions. Reinforced lower mounts, helper springs (If applicable), and specialized spring rates with matched valving derived from endless testing and research provides top level drifters with the performance and reliability they expect from a high performance drift spec suspension.
• All McPherson coilovers come with pillowball upper mount with camber plate. It
  adjusts the camber allowing for better turn in and enhances the stability of the vehicle.
• The specialized rear spring rate setup helps to improve rear axle traction without affecting the stability of vehicle. Furthermore, it accelerates the rear tyres to aid drifting and handling for high-speed.
• There are 36 different damping settings to meet different requirements of
  race-road conditions and variations in the vehicles.
• If there is no application listed, we can customize the coilover for you to meet your requirements.
• Camber and caster can be adjusted by 3D pillowball top mount.
• All applications listed on our website are for 2WD model unless we specify 4WD.
• The “model year” defined for each application on our website might be different to the ones in each country; therefore, please confirm the “production years” with us if you are unsure.

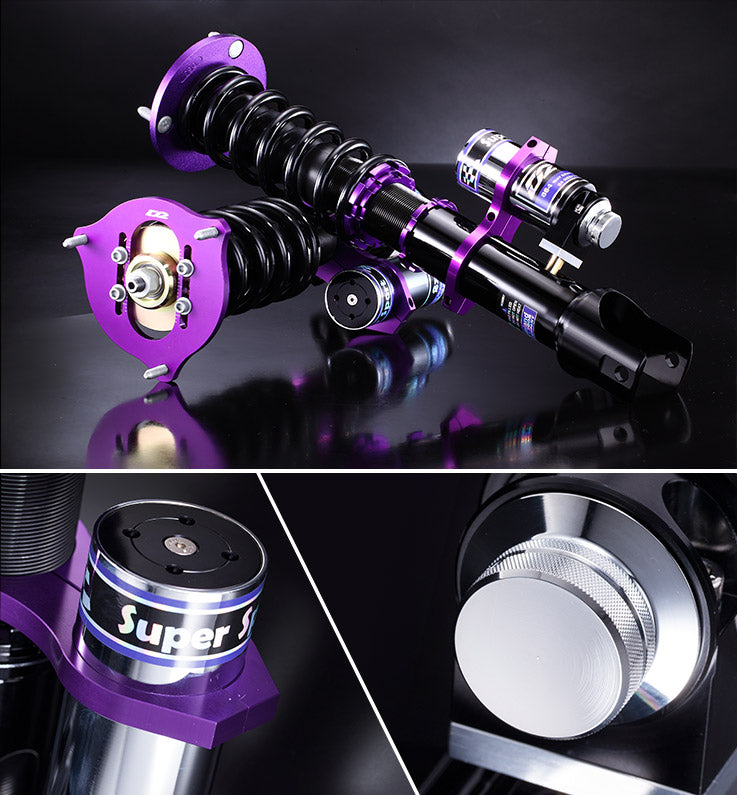

Super Sport Coilover Suspension Kit

• There are 2 adjustment knobs in this unit, one is for adjusting nitrogen pressure and the other one is for adjusting the damping force.
• The compression and rebound damping settings can be adjusted separately, and above-mentioned adjustment knobs can be adjusted separately as well; There are 864 different settings to adjust.
• The best part is this allows you to extend the amount of oil and nitrogen gas which can increase the stability of the shocks and prevent shock oil temperature becoming too high after long-term use.
• The coilover can be used particularly in track, rally asphalt, drifting, 0-400M drag race specs.

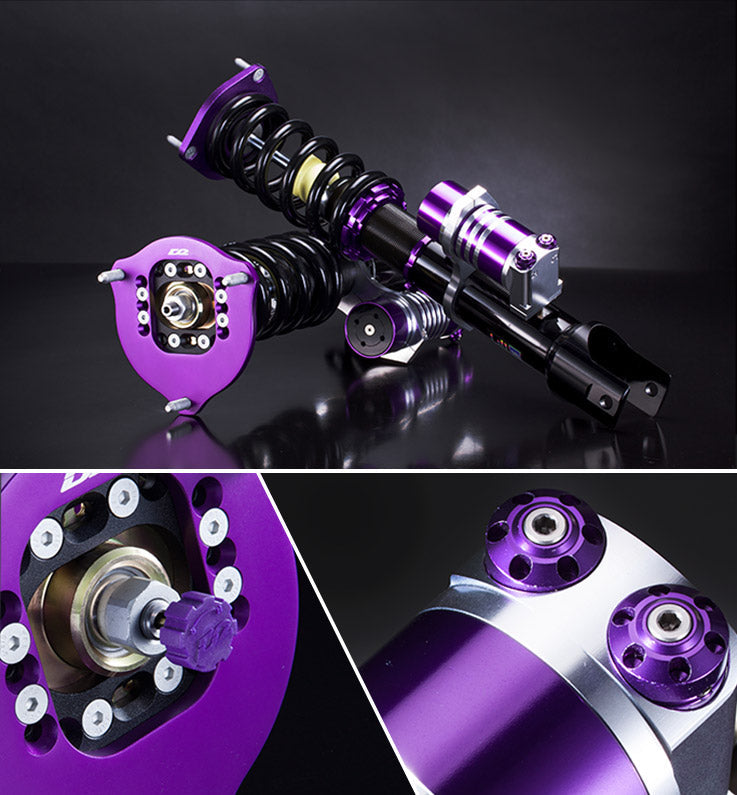

Super Racing Coilover Suspension Kit

• There are 3 adjustment knobs in this unit. One is for adjusting nitrogen pressure, others are for adjusting high and low damping force.
• The compression and rebound damping settings can be adjusted separately, and above-mentioned adjustment knobs can be adjusted separately as well; There are 11664 different settings to adjust
• The best part is this allows us to extend the amount of oil and nitrogen gas which can increase the stability of the shocks and prevent the shock oil temperature becoming too high after long-term use.
• Super racing coilover can be used particularly in track, rally asphalt, drift and drag.
