Camburg 4130 SQ. Bolt-on Spindle Snout Block

Looking to build your own spindles/uprights using a bolt-on hub spindle snout? Our spindle snout block is...
Vendor: Camburg
SKU: CMBCAM-010018
Availability: Out Of Stock
Product Type: Flanges
Dhs. 617.99 AED
Dhs. 617.99 AED
Please hurry! Only 0 left in stock
Subtotal: Dhs. 617.99
10 customers are viewing this product

Ships Worldwide

Built And Shipped Within 7 - 10 Bussiness Days

Photo - Primary

Camburg 4130 SQ. Bolt-on Spindle Snout Block

Dhs. 617.99

Camburg 4130 SQ. Bolt-on Spindle Snout Block

Dhs. 617.99

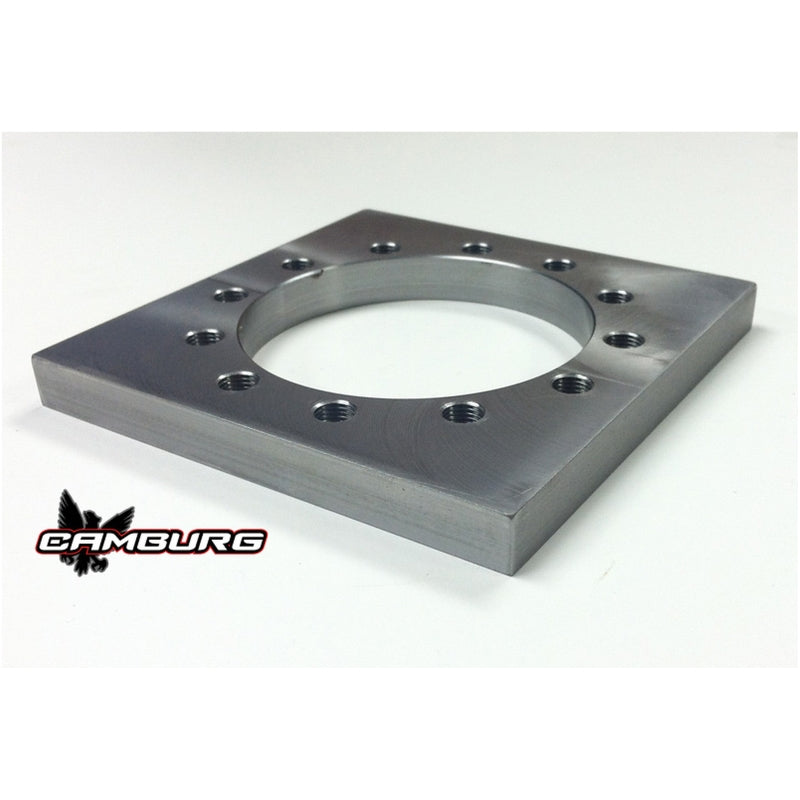

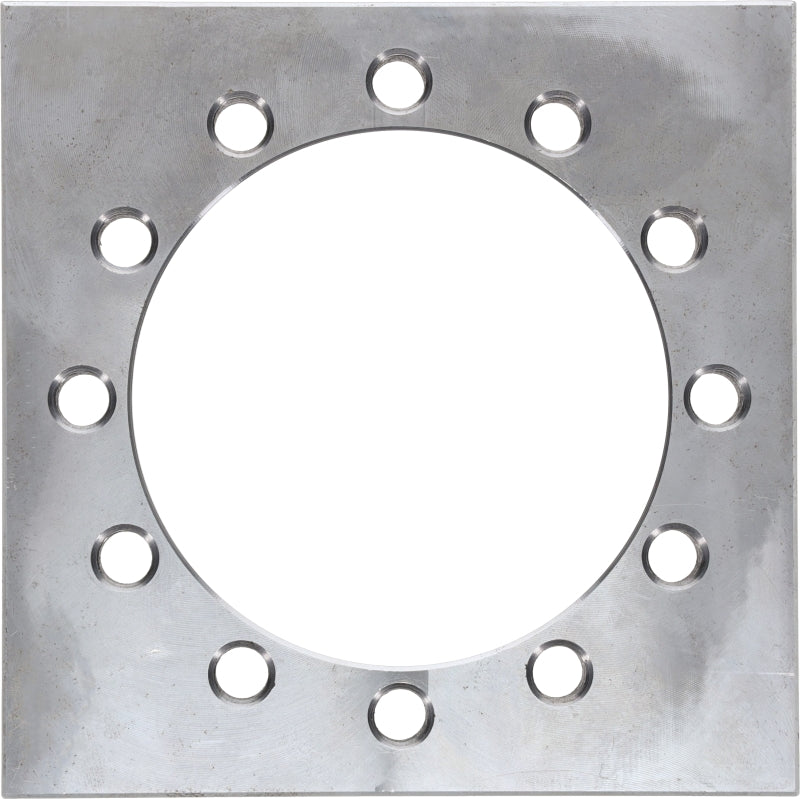

Looking to build your own spindles/uprights using a bolt-on hub spindle snout? Our spindle snout block is CNC machined in-house from aircraft quality 4130 chromoly that's 1/2" thick. It's 5" x 5" and uses the industry standard Dana 44  bolt pattern that we have doubled up (12 on 4" with 3.375" ID bore). The bolt holes are 3/8-24 and we recommend using mil-spec AS MS21250 series 12pt bolts to attach the snout with. These are machined for a slight press fit and most times requires post machining after welding and/or heat-treatment. Designed for all Camburg 12 bolt spindle snouts among many others We machine all sides and the top & bottom surfaces so everything is parallel. Nothing is laser or waterjet cut like cheaper versions.
